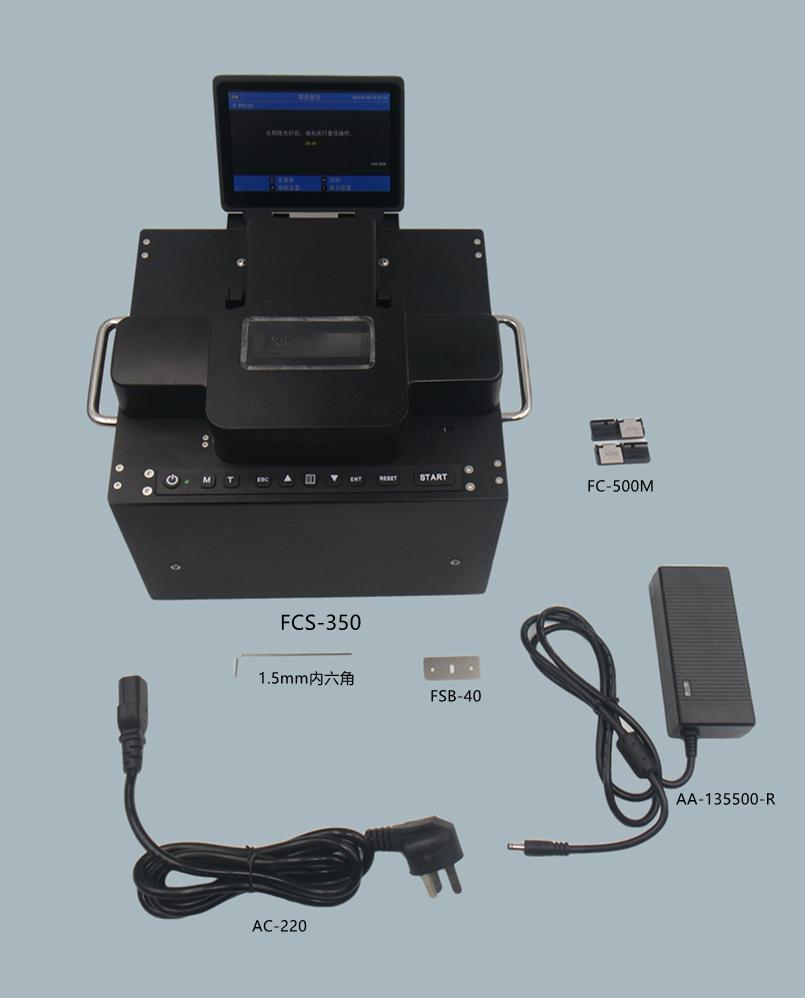

| Model Name | FCS-350 |
| Applicable optical fiber material | Quartz fiber |
| Applicable cladding diameter | φ 60 to 1200 µm |
| Applicable coating diameter | φ 60 to 1500 µm |
| Stripping length | 1 to 35mm （Window stripping : 4 to 31mm） |
| Blade life | 350×4（times） |
| Fiber count | Single core |
| Stripping time | Coating removing action ×4：18s |
| Coating removing action ×8：35s | |
| Coating removing action ×16：60s | |
| Dimensions | 238mm(L)*215mm(W)*193mm(H) |
| Weight | 6.1kg(Containing Battery) |
| Power supply |
External power supply： AC input：100 to 240 V （50 to 60Hz） DC output：13.5V / 5A Internal lithium battery：10.8V, 20400mAh |
| Operating condition | Temperature：0～＋40℃，humidity：＜95％(non-dew)，altitude：0～5000m |
| Storage condition | Temperature：-20～＋60℃，humidity：＜95％(non-dew) |
